MING 37.05 MOONPHASE

This watch is sold out with deliveries complete. It will not be produced again. This archive is for reference and information only.

To stay updated on future releases and new watches, please subscribe to our newsletter.

Click here to order

A little romantic whimsy

A moon-phase is an old complication, and perhaps one of the least useful for modern life, yet one that still holds a special place in the hearts of collectors for reasons we’re not quite sure of ourselves, despite owning several. A date is at least a bit more useful. We opted to combine the two and keep the old-school whimsy going by opting for a manual wind movement – once again, offering the enthusiast more opportunities to interact with their watch.

Integration, dynamism and inversion

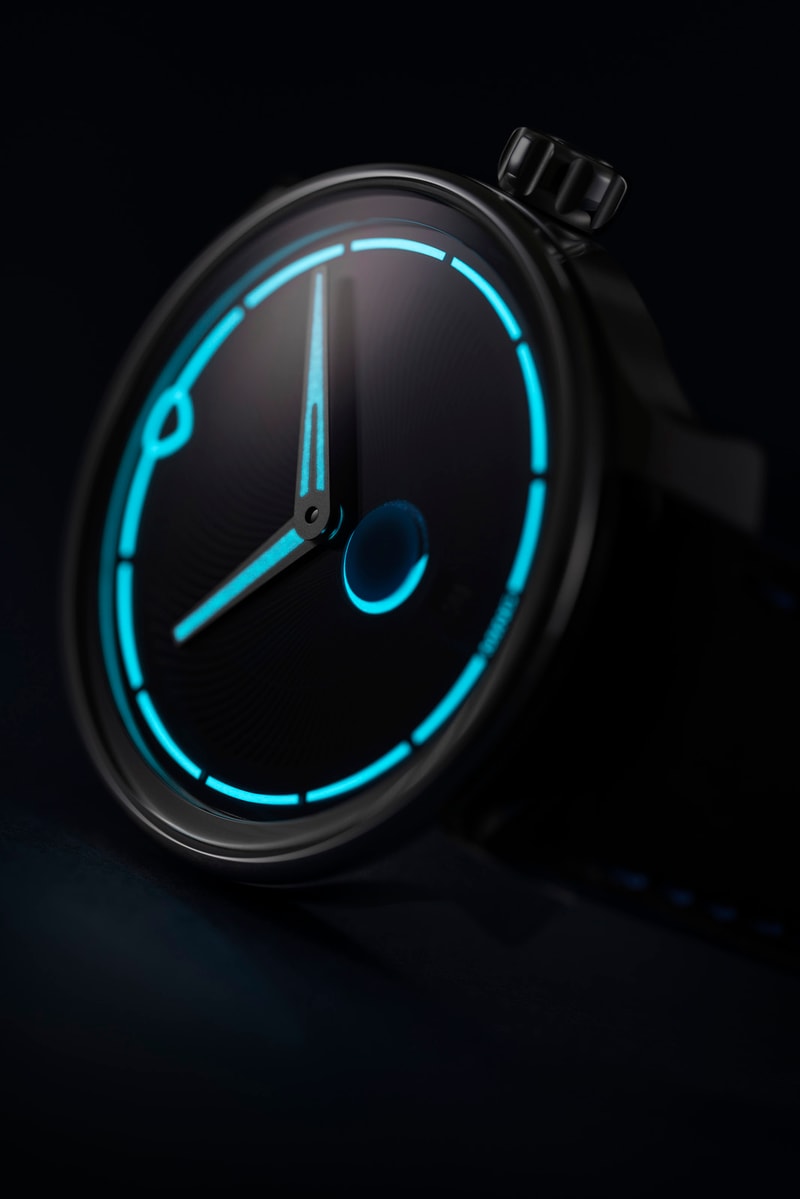

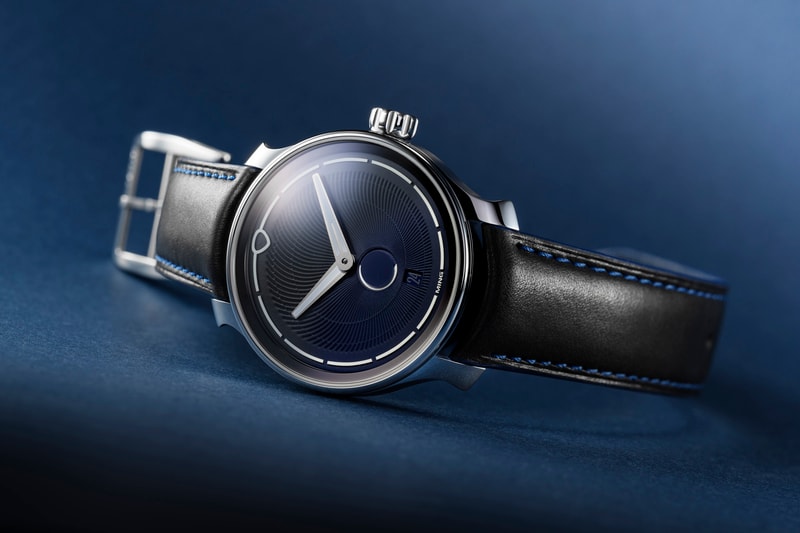

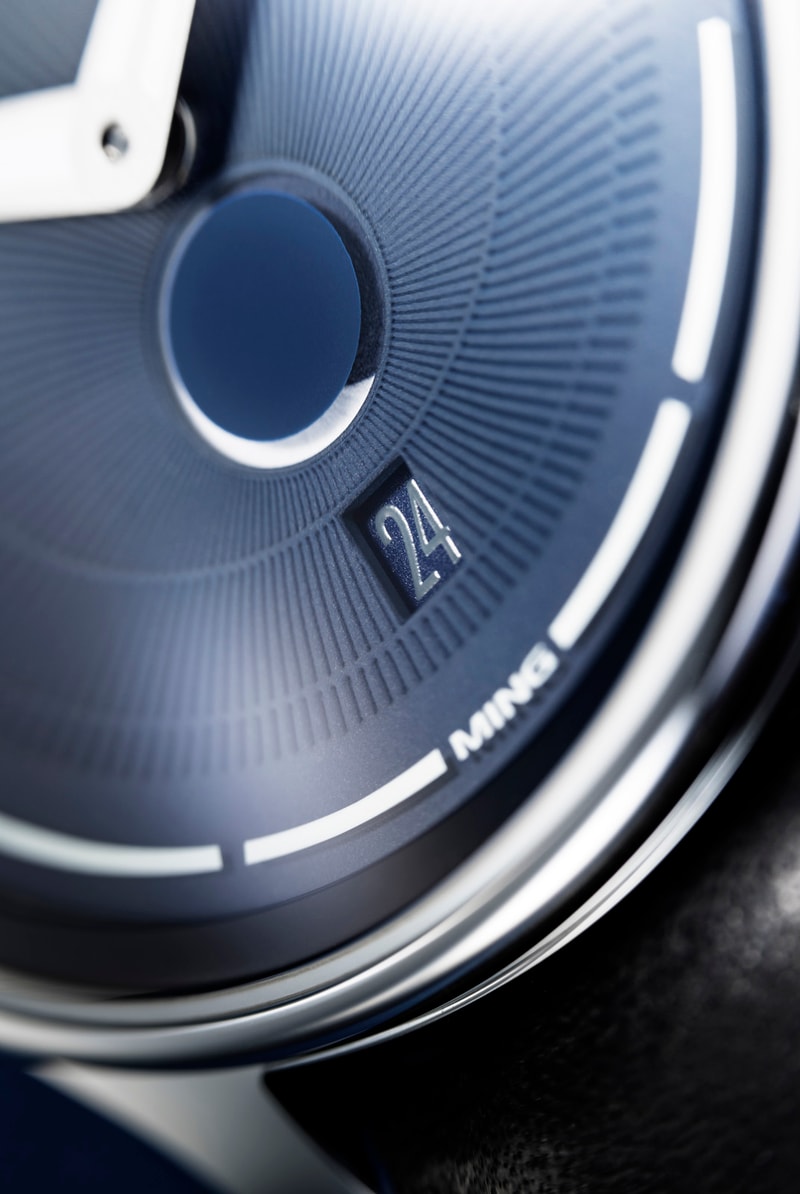

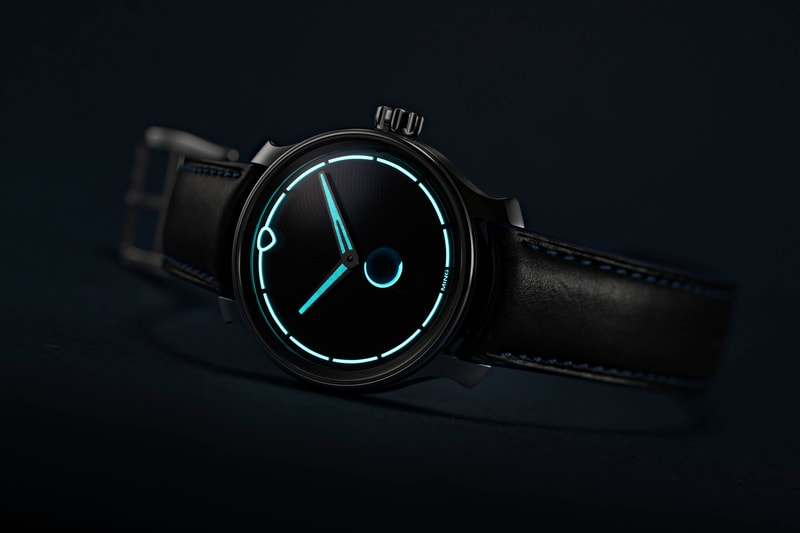

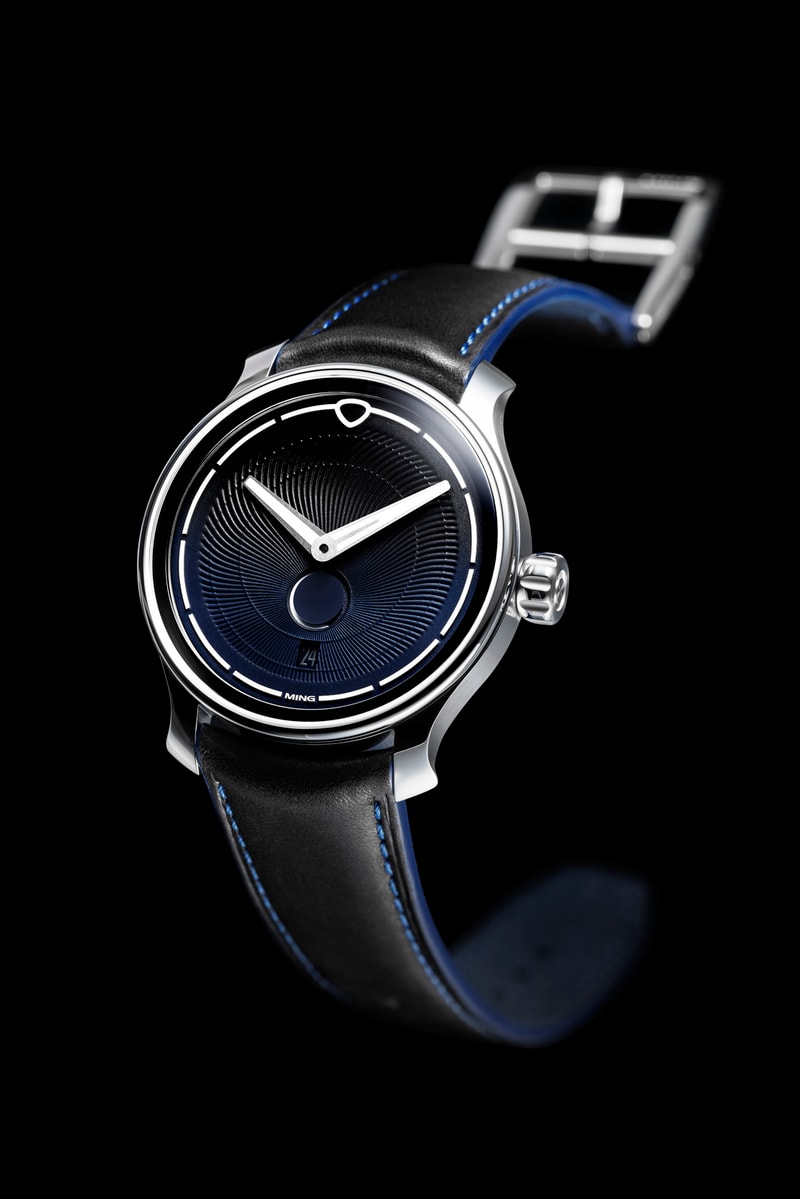

Of course, being us, we scrutinized both moon and date to figure out a smoother presentation than the usual holes-in-a-dial style that was more suited to our design language. Our continuing use of multi-layered sapphire dials offered a solution: the apertures for date and moon lie in the lower layer dial, which is metal, textured and carries a midnight blue to black gradient reminiscent of the night sky, with a seamless sapphire dial above that carries the hour indices (laser etched, and filled with HyCeram) and a central mask for the moon to mirror our peripheral ring forms. A full moon thus forms a complete ring, which is luminous, with partial phases being portions thereof. The date window preserves symmetry at 6 o’clock, and is as subtle as possible with a background color-matched to the dial, and our usual font in light grey.

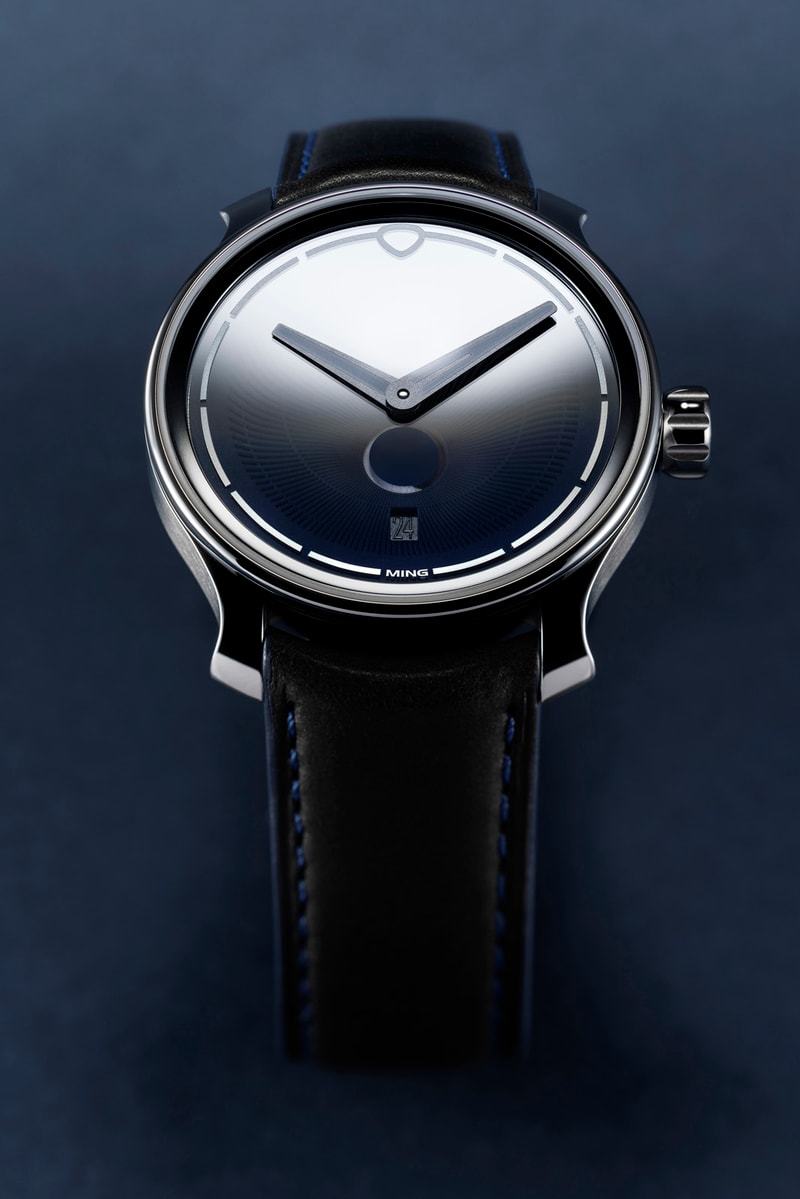

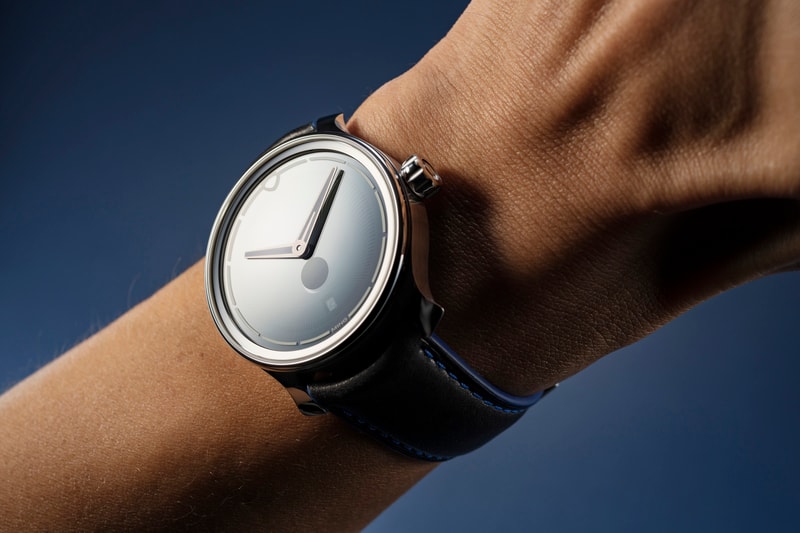

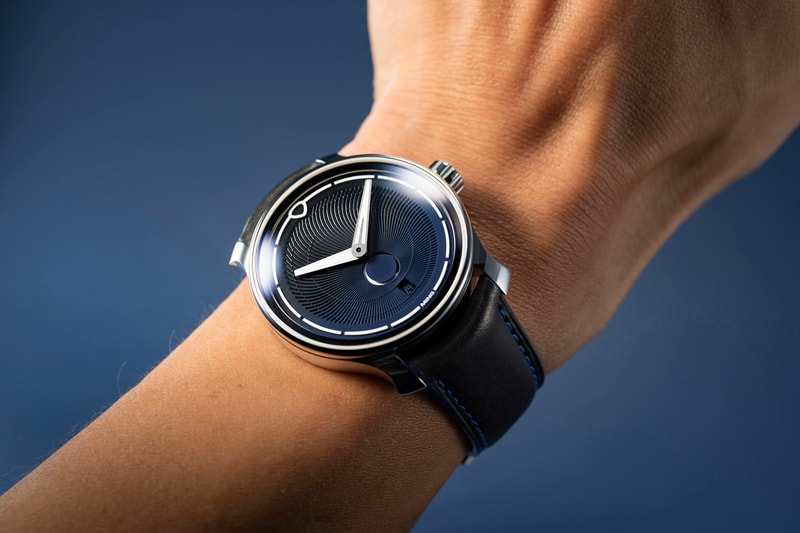

The net result can be seen in the accompanying images and is one of the most dynamic dials we have ever created: it inverts completely from a seamless silver mirror to a solid blue-black with moon and date displays. The transition is gradual and most of the time, the watch presents a bit of both: a calm, reflective serenity above and a lot more visual texture below. Naturally, there is also a lot of luminous material.

The right movement

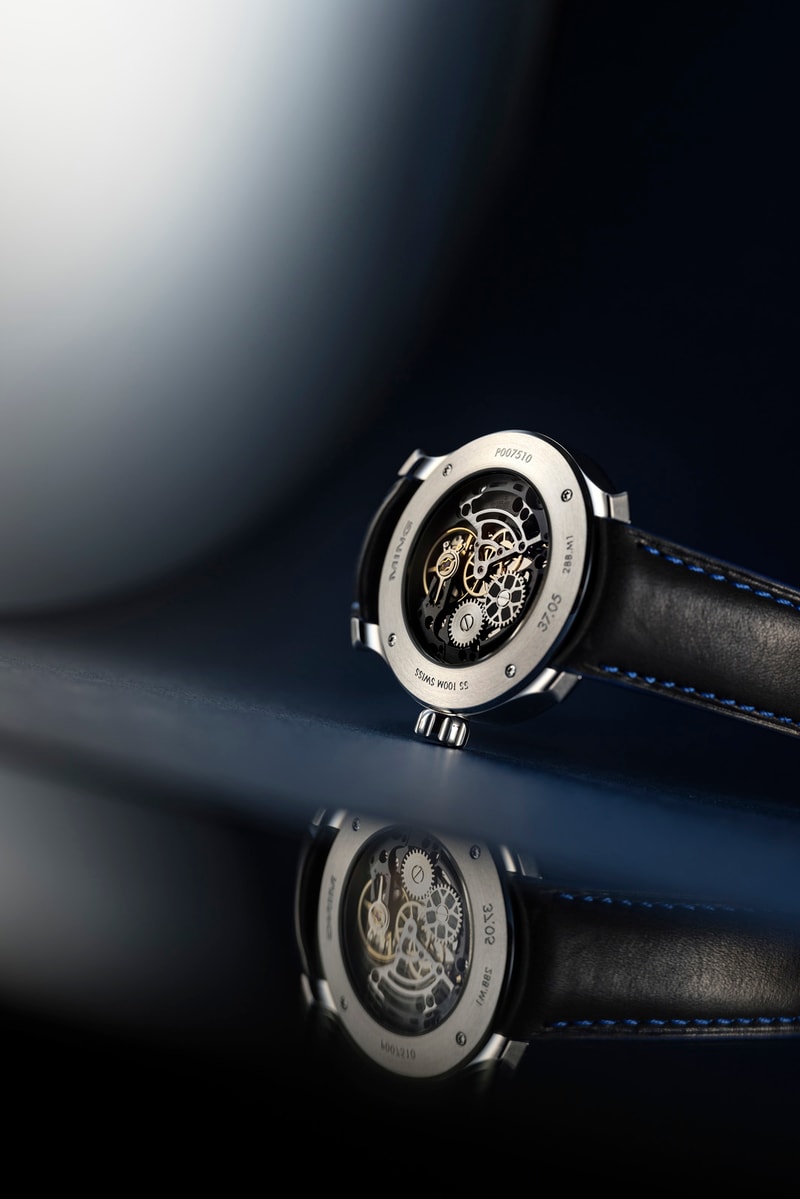

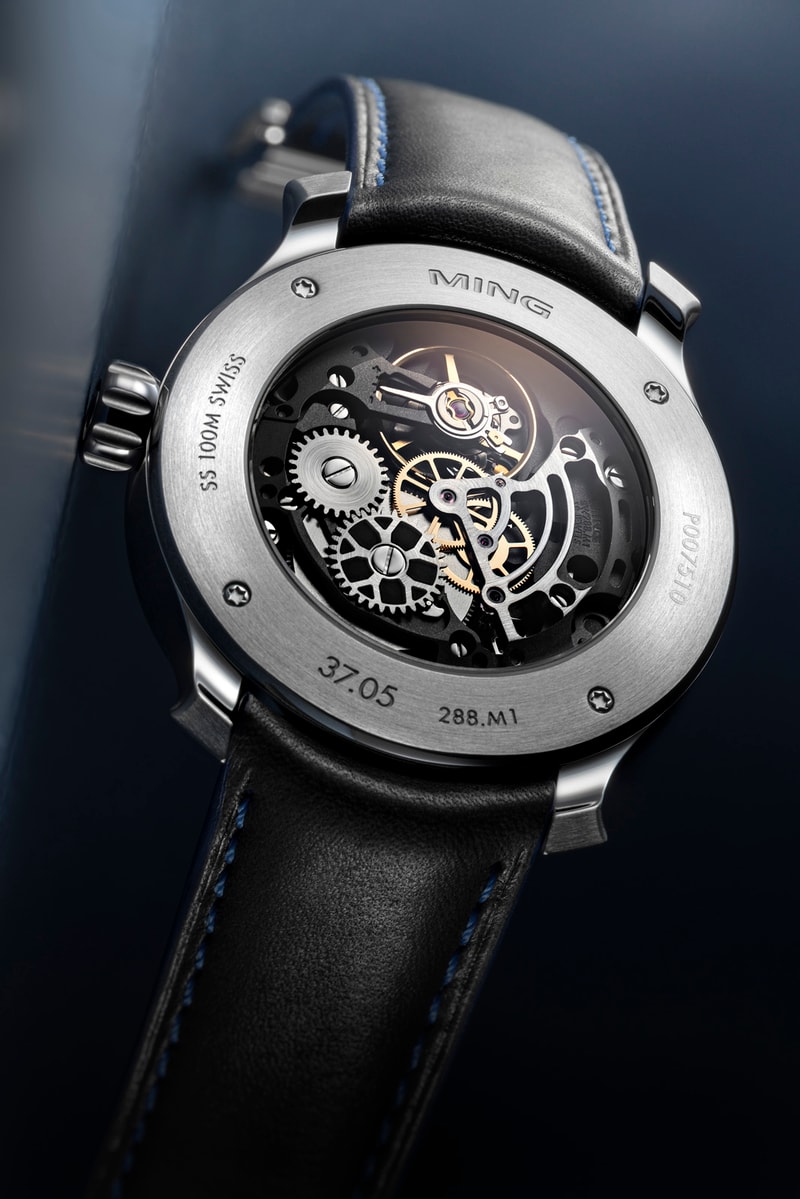

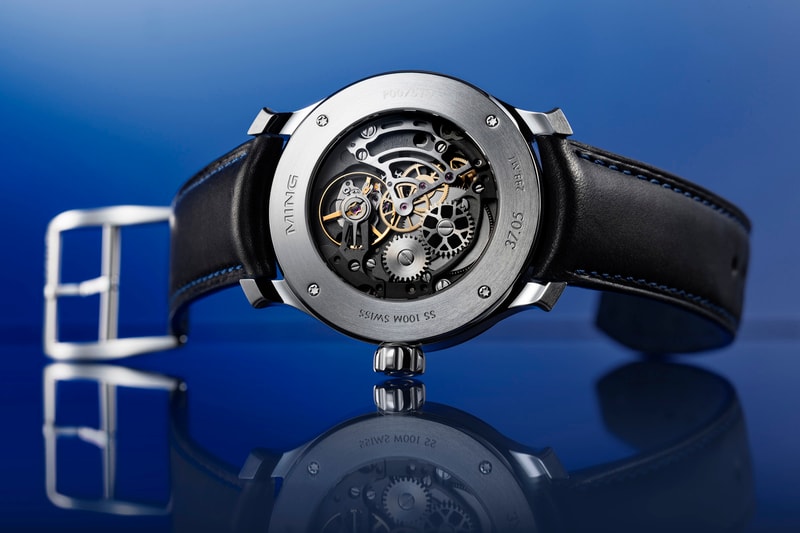

We knew we didn’t want the semicircle moon aperture, but what we had in mind would require a centrally-driven moon disc to offer a sufficiently large display to allow the ring display to work. Only a custom module or the Sellita SW288 offered this possibility, and selection of the latter allowed us to improve overall accessibility of the watch. But to make it worthy of a display back, it was then further reworked in a similar style to the 7001.M1 used in the 27.01 and 27.02; it is skeletonized, matte-blasted and anthracite coated, with a contrasting portion on the main train bridge in circular-brushed rhodium.

Creating the next generation

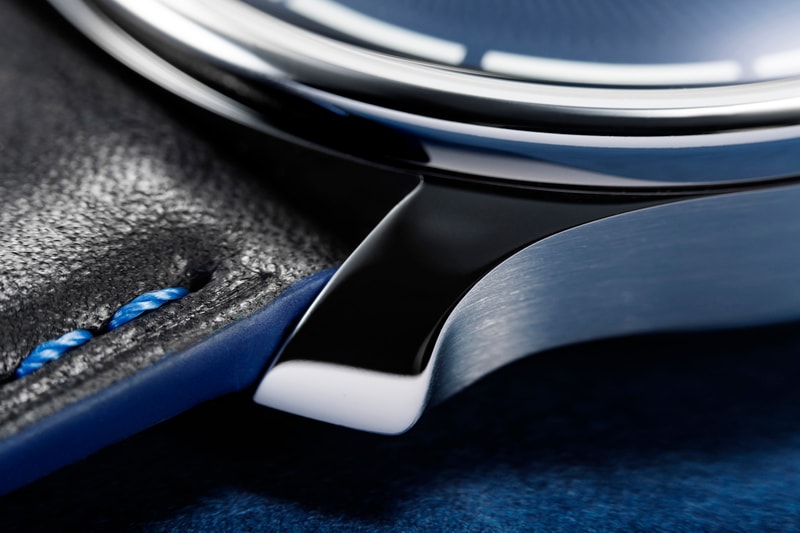

The 37-series case family will form one of our core product lines, spanning from entry level to Special Projects and everything in between. It is a highly refined case design that has complex compound curves – such as the line from case side to lug tip – and multiple finishes. We have also increased the visual presence of the case with a significantly larger dial opening than the 17-series and domed front and rear crystals. However, wearability and comfort for a wide variety of wrist sizes is maintained with the same 38mm maximum diameter and 20mm lug width. In short: it looks bigger than a 17-series, but feels the same on the wrist.

We of course continue our partnerships with Manufacture Schwarz-Etienne for construction, production and assembly; Jean Rousseau Paris for straps, and Studio Koji Sato for the pouches.

- Functions:

  • Hours and minutes
  • Moon phase
  • Date

- Case, dial & hands:

  • 38mm diameter, 11.9mm thickness (8.9mm excluding crystals)
  • 44.7mm lug to lug
  • 316L stainless steel
  • Domed sapphire crystal front and rear, with double-sided antireflective coating
  • Composite metal and laser etched sapphire dial with inlaid HyCeram ceramic Super-Luminova fill and blue-black vertical gradient
  • Luminous moon indication
  • 100m water resistance
  • 20mm lug width

- Movement:

  • Sellita for MING 288.M1, anthracite skeletonized bridges with contrast rhodium circular brushing
  • 25.6mm, 5.65mm thickness
  • Central moon phase indication and date, both with quick set mechanism via crown
  • Manual winding with ~38h power reserve at full wind

- Strap:

  • Black barenia leather strap by Jean Rosseau Paris
  • 20mm width, curved bars with quick release
  • Fitted with 3rd generation keeperless ‘flying blade’ stainless steel buckle with micro adjustment

- Leather travel pouch handmade by Studio Koji Sato

- 2-year limited mechanical warranty

- Made in Switzerland

MING continually aims to improve aesthetics and functionality of products where possible; to this end we reserve the right to make changes prior to final delivery.

This guide applies to the following watches/ variants:

  • 37.05
  • 37.05 SERIES 2

Winding & power reserve:

  • The 37.05 is equipped with a hand/manual winding Sellita SW288.M1 movement.
  • This movement has a ~40 hour power reserve when fully wound.
  • The movement can be wound by turning the crown clockwise (away from you).
  • The movement is equipped with a hard stop, to avoid overwinding. When you feel a resistance or a point beyond which the crown will not turn, please stop winding.
  • Forcing the crown past this point will damage the mainspring and result in the watch requiring an out-of-warranty service

Setting the time:

The crown has three positions:

  • The first position (pushed all the way in) is where the crown should be for wearing and to ensure water resistance. This position is also the hand wound position.
  • The second position (one click out) is the date and moonphase quickset. Turn clockwise and the date will change. Turn counter-clockwise and the moonphase will change. Please note that the date and moonphase cannot be set between 9PM and 3AM. Attempting to do so might result in damage to these mechanisms and require an out-of-warranty service.
  • The third position (two clicks, all the way out) allows for the setting of the hour and minute hands. The movement is 'hacked' in this position and stops running. The watch is also not water resistant in this position. Once the time is set, please push the crown back in.

Other useful information:

  • The best way to clean the watch is with a soft, clean and damp cloth. We strongly discourage the use of any cleaning agents or solutions.
  • We use different formulations and techniques to apply lume on the dials, hands. crystal and other components etc. This results in a slight difference in the peak brightness and length of luminesence between the two. This is normal.
  • Modern luminous material requires charging to work effectively. Lume can be charged with direct exposure to bright sunlight or a strong light source such as a LED torch. The stronger the light source, the faster lume charges.
