MING 20.01 MOSAIC

This watch is sold out with deliveries complete. It will not be produced again. This archive is for reference and information only.

If you'd like to know more about our Special Projects Cave, please see here. To stay updated on future releases and new watches, please subscribe to our newsletter.

Click here to order

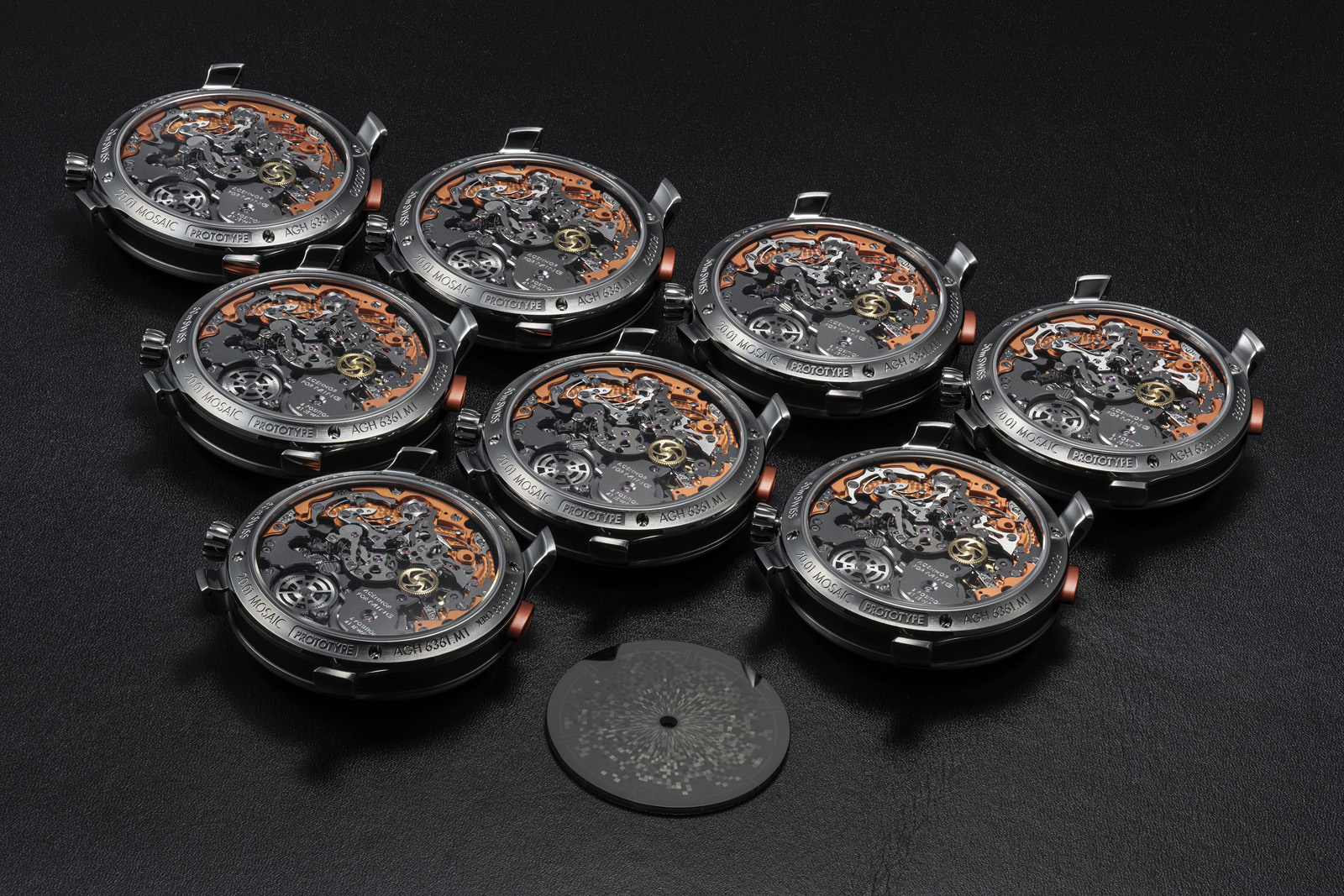

Total production: 8 pieces, completed and delivered 2020

The 20.01 Mosaic was a special subscription piece created for our customers who supported the development of the mosaic process; made as an extension of the 20.01 S1 Concept Chronograph. Eight watches were produced and it has the following differences from the S1 Concept:

  • Sapphire mosaic dial, with 2,625 elements lasered at four different heights and varying opacity within the sapphire. Developed in partnership with Manufacture Schwarz Etienne and DM Surfaces SA.
  • Orange anodized aluminium pushers
  • Orange chronograph hands
  • Orange PVD chronograph plate
  • Upgraded clutch mechanism
  • Specific packaging, including a handmade leather briefcase, travel roll and wooden puzzle box

- Functions:

  • Hours and minutes
  • Central chronograph with seconds and 60-minute counter
  • Instantaneous jumping minutes

- Case, dial & hands:

  • 41.5mm diameter, 14.2mm thickness
  • Grade 5 titanium with 34 parts and 4 different finishes
  • Polished and brushed bezel and ‘flying blade’ lugs
  • DLC coated caseband
  • Orange aluminium pushers
  • Domed sapphire crystal front and rear, with double-sided antireflective coating
  • Front crystal with etched and luminous minute markings
  • 3mm thick sapphire dial with layered mosaic pattern and HyCeram fill
  • Hands with Superluminova X1 fill
  • Rigid case without spacer rings
  • 50m water resistance
  • 22mm lug width

- Movement:

  • Agenhor for MING AgenGraphe Cal. 6361.M1,
  • 34mm diameter, 5.35mm thickness
  • Central chronograph with proprietary Agenhor coupling mechanism, regulator and upgraded clutch
  • Manual winding with overwind protection and twin skeletonized barrels
  • DLC coated bridges and plates in three shades with diamond cut anglage
  • ~60h power reserve at full wind
  • Movement adjusted to six positions

- Made in Switzerland

MING continually aims to improve aesthetics and functionality of products where possible; to this end we reserve the right to make changes prior to final delivery.

This guide applies to the following watches/ variants:

  • 20.01 MOSIAC
  • 20.01 S1 CONCEPT
  • 20.01 SERIES 2

Winding & power reserve:

  • The 20.01 is equipped with a hand/manual winding Agengraphe 6361.M1 movement.
  • This movement has a ~55 hour power reserve when fully wound.
  • The movement can be wound by turning the crown clockwise (away from you).
  • The movement is not equipped with a hard stop. It uses a slipping clutch for overwind protection.
  • The state of wind can be determined by checking the skeletonised barrel cover on the movement.

Setting time:

The crown has two positions:

  • Note: please stop the chronograph before setting the time
  • The first position (pushed all the way in) is where the crown should be for wearing and to ensure water resistance. The watch can also be hand wound in this position.
  • The second position (one click out) allows for the setting of the hour and minute hands. The movement is 'hacked' in this position and stops running. Once the time is set, please push the crown back in to ensure water resistance.

Operating the chronograph:

  • To start and stop the chronograph, push the pusher at 2 o' clock (top right).
  • To reset the chronogaph, push the pusher at 10 o' clock (top left).

Precautions to take when operating the chronographe:

  • Avoid pushing reset while the chronographe is still running.
  • The chronograph must be stopped before it can be reset.
  • Avoid pulling out the crown while the chronograph is still running.
  • Do not operate the chronograph pushers while underwater.

Other useful information:

  • The best way to clean the watch is with a soft, clean and damp cloth. We strongly discourage the use of any cleaning agents or solutions.
  • We use different formulations and techniques to apply lume on the dials, hands, crystal and other components etc. This results in a slight difference in the peak brightness and length of luminesence between the two. This is normal.
  • Modern luminous material requires charging to work effectively. Lume can be charged with direct exposure to bright sunlight or a strong light source such as a LED torch. The stronger the light source, the faster lume charges.
